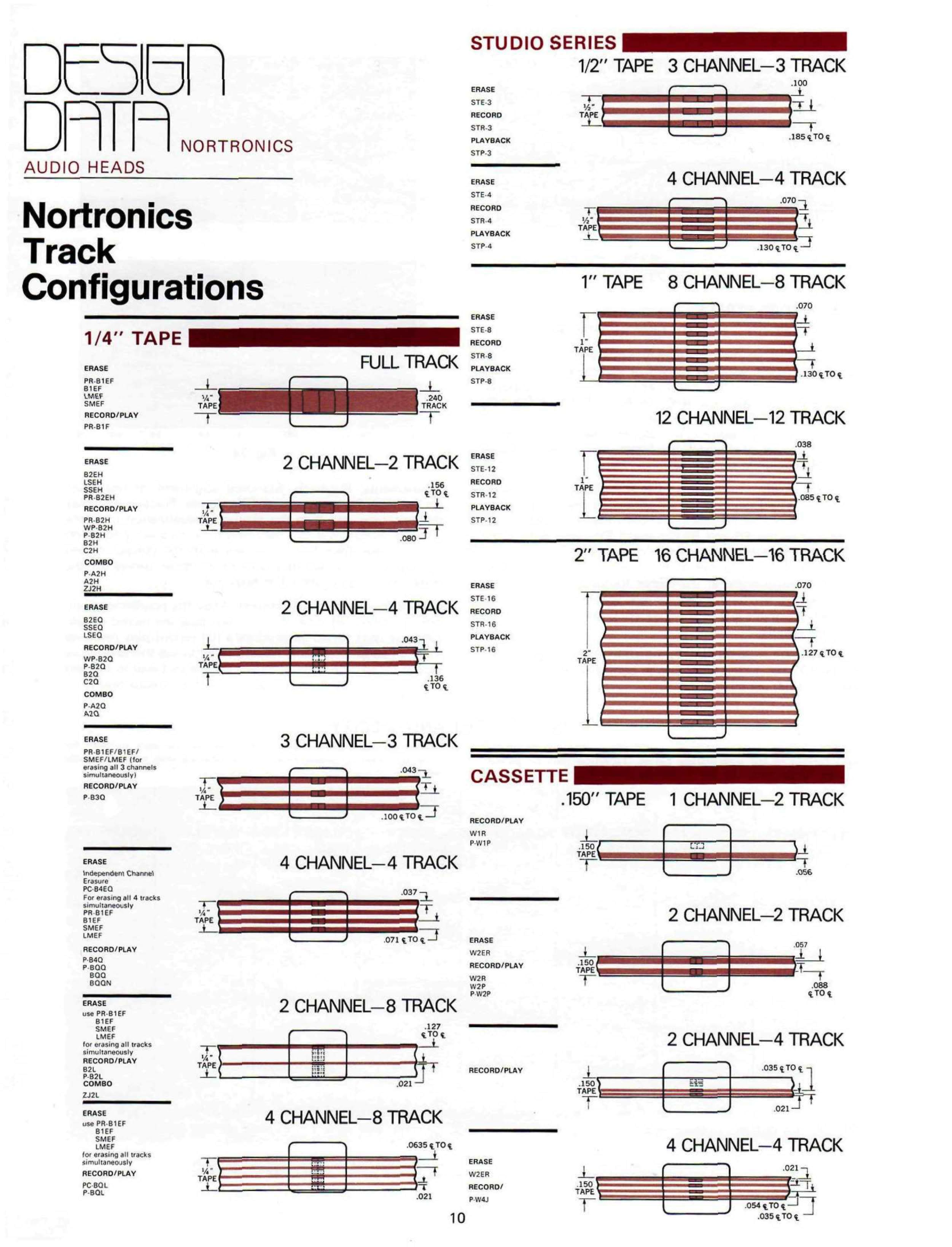

You are at the JRF/ Nortronics Analog Heads Track Format Diagrams page of the "Nortronics Silver Catalog".
